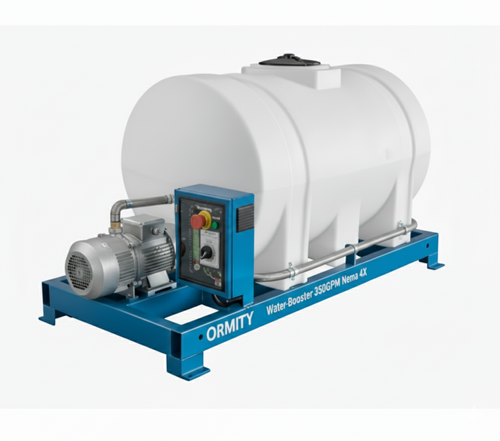

Water Booster 350 GPM – NEMA 4X Hosedown
SKU DNWB250-350|ORTYWB250-350
Original price
$8,250.00
Sale price
$7,012.50
NEMA 4X water booster for high-flow water supply in hosedown tests, per NEMA 250 / UL 50E Type 4 and 4X hosedown.
Standards
- NEMA 250 – Type 4 / 4X hosedown
- UL 50E – hosedown test (65 GPM through 1" nozzle)
Technical data
| System capacity | 350 GPM max. |
| Pump | 80 GPM industrial centrifugal |
| Tank | 350 gal, rotomolded polyethylene |
| Flow control | VFD + potentiometer |
| Chassis | Structural aluminum, blue epoxy paint |
| Panel | NEMA 4X with emergency stop |
| Outlet | Industrial quick-connect or flange (e.g. 2" NPT) |
Ref.: DNWB250-350 (Dunel) / ORTYWB250-350 (Ormity) – former codes: ORTY350-4X-V1
Quantity
Test Principle & Function
Integrated water-supply skid for NEMA 4 / 4X hosedown tests: 350-gallon tank, 80 GPM centrifugal pump with variable-frequency drive and a NEMA 4X electrical panel. Meets the minimum water volume of the 5-minute hosedown test (325 gallons). Also suitable for general industrial high-flow supply.
Ordering, Calibration & Warranty
- Lead time: up to 35 days with Ormity factory calibration; up to 60 days with an ISO/IEC 17025 calibration report (charged separately).
- Warranty: 1 year, plus lifetime warranty against non-compliance (excluding standard revisions published after the date of sale).
- Payment: international orders are 100% prepaid. All sales are final after 30 days.
- Shipping: by third-party international carriers; transit time depends on destination, packing (crate/pallet) and calibration route. Ask for a delivery estimate before ordering.
