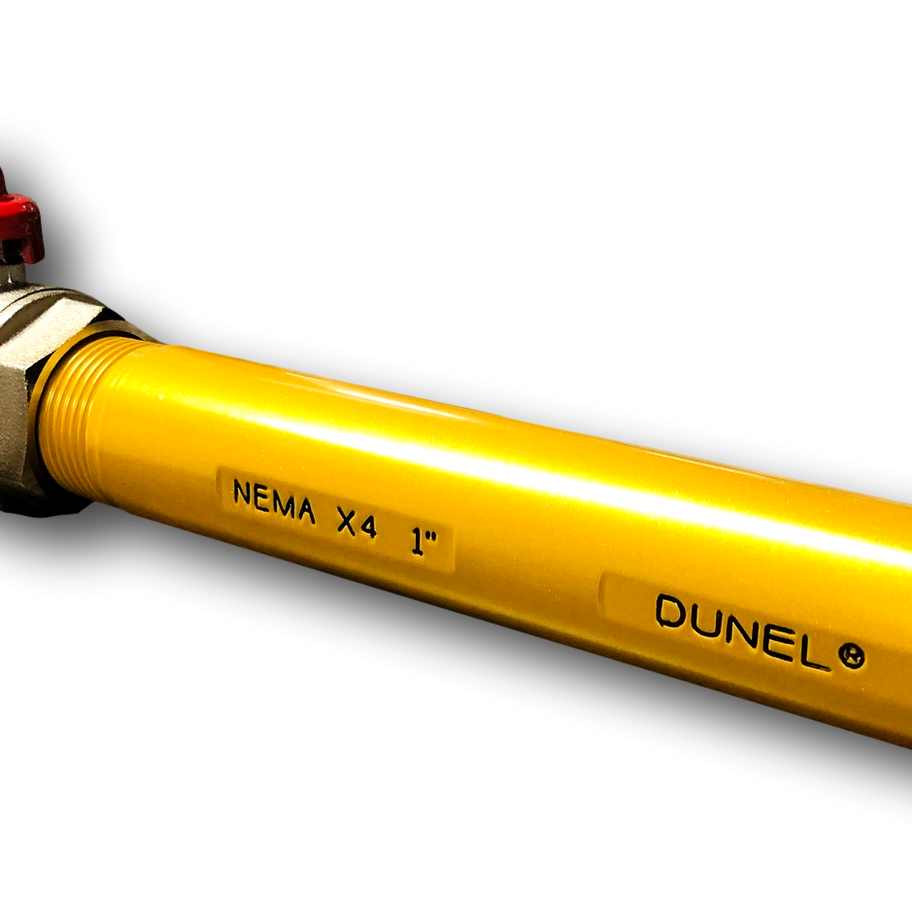

NEMA 4X Test Nozzle 1" – NEMA 250 / UL 50E
SKU DNNM4X-250|ORTYNM4X-250
Price
$490.00
NEMA 4X hosedown nozzle for hose-directed water tests on enclosure gaskets, per NEMA 250 / UL 50E Type 4 and 4X.
Standards
- NEMA 250 – Type 4 / 4X hosedown
- UL 50E
Technical data
| Outlet | 1" (25.4 mm) |
| Materials | SS316L (lifetime), anodized aluminum, or composite (occasional use) |
| Valve | 1" ball valve |
| Hose connection | 1" BSP / NPT |
| Test flow | ≈ 65 GPM (250 L/min) |
Ref.: DNNM4X-250 (Dunel) / ORTYNM4X-250 (Ormity) – former codes: ORTY250-X4/1-SS, ORTY250-X4/2-AL, ORTY250-X4/3-CP
Quantity
Test Principle & Function
1" nozzle used to direct a hose stream against door seams and gaskets of Type 4 / 4X enclosures. The test uses about 65 GPM (≈ 250 L/min) of water.
Versions & Order Codes
| DNNM4X-250/SS / ORTYNM4X-250/SS | SS316L |
| DNNM4X-250/AL / ORTYNM4X-250/AL | Anodized aluminum |
| DNNM4X-250/CP / ORTYNM4X-250/CP | Composite |
Ordering, Calibration & Warranty
- Lead time: up to 35 days with Ormity factory calibration; up to 60 days with an ISO/IEC 17025 calibration report (charged separately).
- Warranty: 1 year, plus lifetime warranty against non-compliance (excluding standard revisions published after the date of sale).
- Payment: international orders are 100% prepaid. All sales are final after 30 days.
- Shipping: by third-party international carriers; transit time depends on destination, packing (crate/pallet) and calibration route. Ask for a delivery estimate before ordering.
