Universal Adjustable Spring Hammer 0.14–1 J – IEC 60068-2-75 (Ehb)
SKU ORTYSH068-5E
Price
$2,750.00
Adjustable spring hammer with five selectable impact energies (0.2 / 0.35 / 0.5 / 0.7 / 1.0 J), per IEC 60068-2-75 Test Ehb and IEC 62262 (IK02–IK06).
Standards
- IEC 60068-2-75 – Test Ehb: spring hammer
- IEC 62262 – IK02, IK03, IK04, IK05, IK06
Technical data
| Energies | 0.14 / 0.20 / 0.35 / 0.50 / 0.70 / 1.0 J (IK02–IK06) |
| Energy tolerance | ± 10 % |
| Striking element mass | 0.2 kg |
| Striking face | Polyamide, hardness HRR 85–100, hemispherical R10 |
| Body | Ø 50 mm, length ≈ 211 mm |
| Release | Manual cocking, push-button / cone release ≤ 10 N |
Ref.: DNSH068-5E (Dunel) / ORTYSH068-5E (Ormity) – former codes: OTY068-SH5E
Quantity
Test Principle & Function
Single adjustable unit for low-energy impact tests on enclosures, levers, handles and other accessible parts.
Calibration

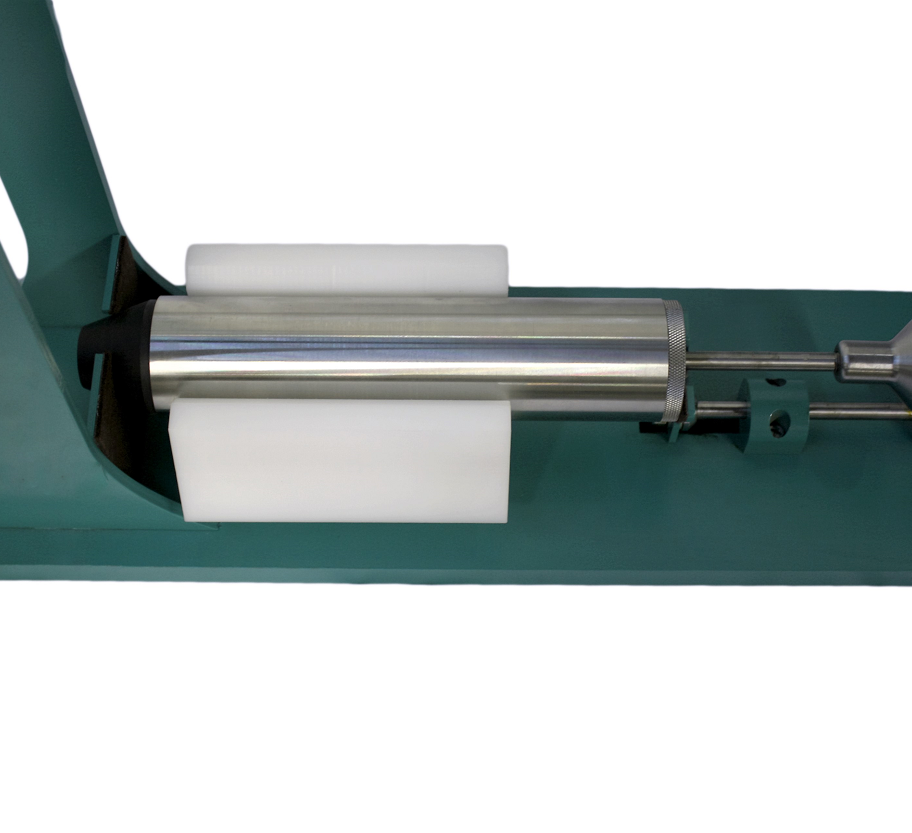

Energy verification per IEC 60068-2-75 Annex B with the spring hammer calibration device (DNSH068-CAL, former code OTY068-CAL-SPR).
Ordering, Calibration & Warranty
- Lead time: up to 35 days with Ormity factory calibration; up to 60 days with an ISO/IEC 17025 calibration report (charged separately).
- Warranty: 1 year, plus lifetime warranty against non-compliance (excluding standard revisions published after the date of sale).
- Payment: international orders are 100% prepaid. All sales are final after 30 days.
- Shipping: by third-party international carriers; transit time depends on destination, packing (crate/pallet) and calibration route. Ask for a delivery estimate before ordering.
