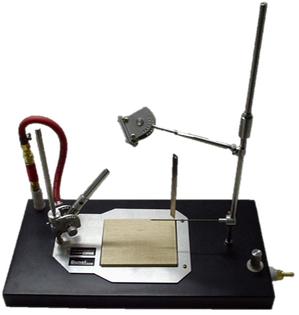

Needle Flame Tester – IEC 60695-11-5
SKU DNNF695|ORTYNF695
Price
$1,895.00
Needle flame tester for small-flame ignition tests, per IEC 60695-11-5.
Standards
- IEC 60695-11-5 – needle-flame test method, apparatus and confirmatory test
- Referenced by IEC 60335-1, IEC 60598-1, IEC 62368-1, IEC 60730-1
Technical data
| Burner | Needle burner, bore Ø 0.5 ± 0.1 mm, removable for any application angle |
| Flame height | 12 ± 1 mm |
| Gas | Butane / propane, pressure regulator and needle valve |
| Specimen holder | X, Y, Z adjustment |
| Confirmation | Copper block Ø 4 mm / 0.58 g with type K thermocouple (DNNF695-CB01) |
Ref.: DNNF695 (Dunel) / ORTYNF695 (Ormity)
Quantity
Optional 0.5 m³ Chamber
Test chamber 0.5 m³, ≤ 20 lx background, exhaust fan, 1100 × 900 × 900 mm, 39 kg (code DNNF695-5).
Ordering, Calibration & Warranty
- Lead time: up to 35 days with Ormity factory calibration; up to 60 days with an ISO/IEC 17025 calibration report (charged separately).
- Warranty: 1 year, plus lifetime warranty against non-compliance (excluding standard revisions published after the date of sale).
- Payment: international orders are 100% prepaid. All sales are final after 30 days.
- Shipping: by third-party international carriers; transit time depends on destination, packing (crate/pallet) and calibration route. Ask for a delivery estimate before ordering.
