Flexural Test – IEC 60335-1 Clause 25.14
SKU DNFLX335-25.14|ORTYFLX335-25.14
Price
$0.00

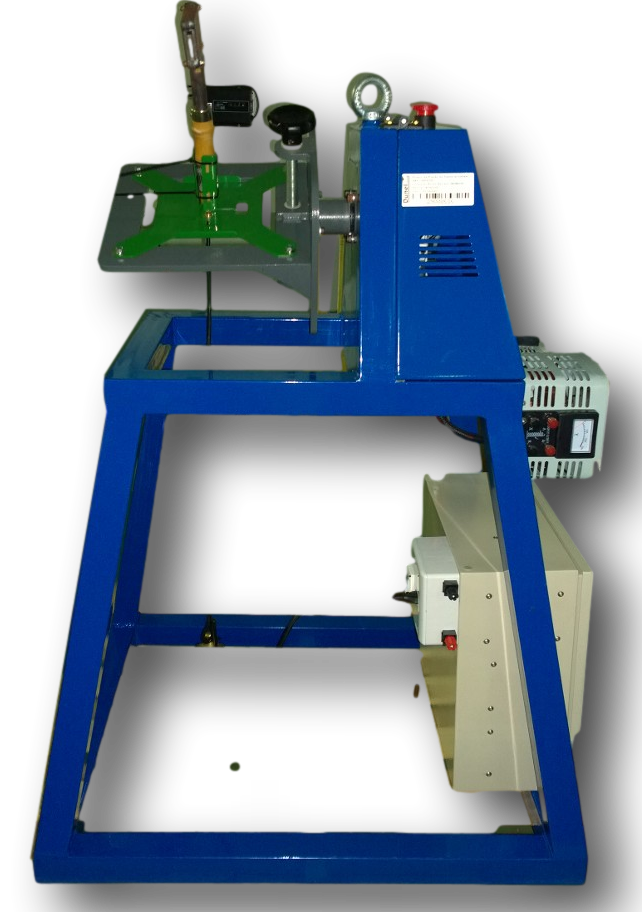

Cord flexing test apparatus for repeated bending of supply cords and cord guards, per IEC 60335-1 cl. 25.14.
Standards
- IEC 60335-1 – cl. 25.14
Technical data
| Supply | 220 V, 50 Hz |
| Flexing speed | 0–60 cycles/min |
| Cycle counter | 0–999 999 |
| Test loads | 5 N and 10 N |
| Power load | Integrated (current through conductors during test) |
| Interface | 5" HMI touch |
Ref.: DNFLX335-25.14 (Dunel) / ORTYFLX335-25.14 (Ormity) – former codes: DNFLX335/1-25.14, DNFLX335-25.14/1…/3
Quantity
Test Principle & Function
The oscillating member bends the cord at the cord-entry while the conductors carry the rated current; the test checks conductor breakage and short-circuit between conductors.
Versions & Order Codes
| DNFLX335-25.14/1 / ORTYFLX335-25.14/1 | 1 station, electrical control, angles 45° / 60° / 90° |
| DNFLX335-25.14/2 / ORTYFLX335-25.14/2 | 1 station, PLC, angle 0–360° |
| DNFLX335-25.14/3 / ORTYFLX335-25.14/3 | 3 or 6 stations, PLC, angle 0–360° |
Ordering, Calibration & Warranty
- Lead time: up to 35 days with Ormity factory calibration; up to 60 days with an ISO/IEC 17025 calibration report (charged separately).
- Warranty: 1 year, plus lifetime warranty against non-compliance (excluding standard revisions published after the date of sale).
- Payment: international orders are 100% prepaid. All sales are final after 30 days.
- Shipping: by third-party international carriers; transit time depends on destination, packing (crate/pallet) and calibration route. Ask for a delivery estimate before ordering.
