ORMITY WT250-DYNAM — DYNAMIC WIND SIMULATOR

ORMITY WT250-DYNAM — DYNAMIC WIND SIMULATOR - High-performance closed-loop wind simulator for transient aerodynamic testing in
extreme cold. Dual synchronized motors (800–1,000 kW), programmable dynamic profiles, and arctic-grade components for challenging environments.

FULL DESCRIPTION:

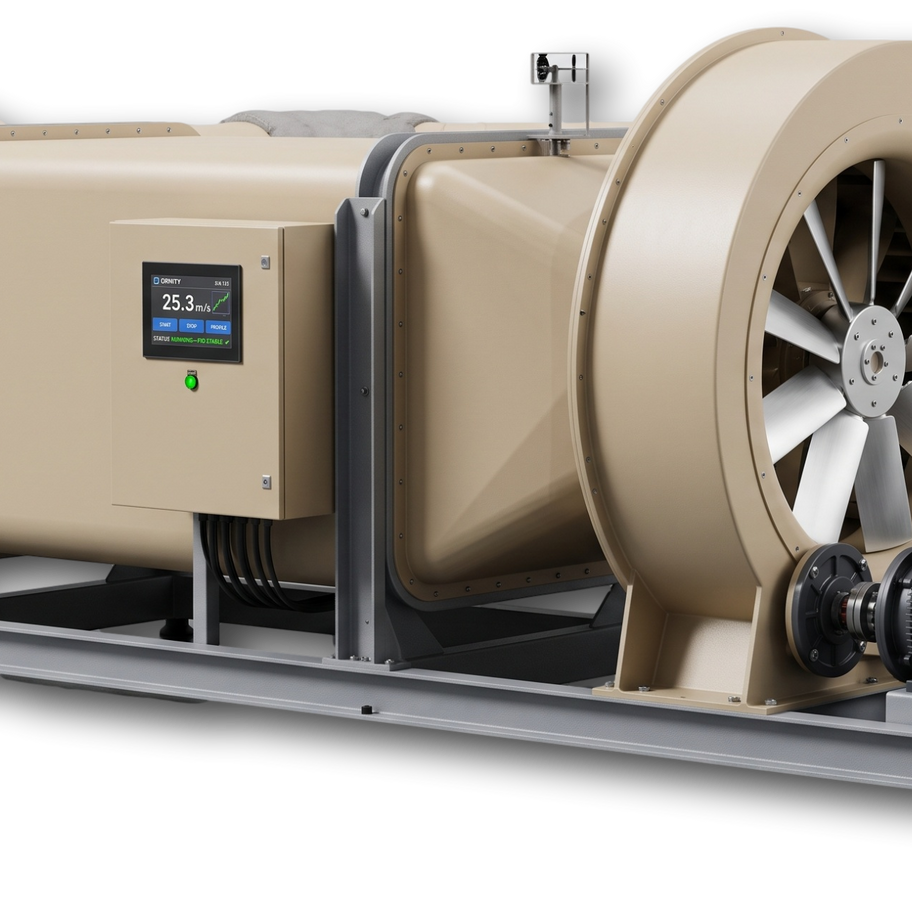

The WT250-DYNAM is an advanced wind simulation system with a 2500×2500 mm test section, capable of continuous velocities from 5.6 to 36.1 m/s (20–130 km/h). Equipped with dual-anemometer closed-loop feedback and industrial PC controller certified for extreme
cold operation (–40 to –50°C).

The system enables dynamic wind profile simulation (ramps, steps, gusts) via 7" IoT
touchscreen HMI with continuous data logging and Modbus TCP/RTU export. Dual 400–500 kW motors with synchronized vector VFDs ensure load sharing and stability across the full velocity range. Ideal for arctic water-ingress testing, spray drift analysis, and
cold-soak aerodynamic evaluation.

KEY SPECIFICATIONS:


Velocity Range:            5.6–36.1 m/s (20–130 km/h) continuous
Test Section:              2500 × 2500 mm (6.25 m²)
Fan:                       Ø2800 mm, 9-blade fixed-pitch aluminum
Motors:                    2 × 400–500 kW, 3-phase, NEMA Premium Efficiency
Total Power:               800–1,000 kW (dual synchronized)
Speed Control:             Dual vector VFDs, 0–60 Hz
Feedback:                  Dual anemometers (pitot-static + mechanical)
Control:                   Industrial PC + 7" IoT touchscreen (–40…–50°C rated)
Operating Temperature:     –40 to –50°C (component-level certification)
Static Pressure @ max:     ≈2,400 Pa
Flow @ 36.1 m/s:           225 m³/s (810,000 m³/h)

FEATURES:


✓ Dual-anemometer feedback for measurement redundancy
✓ Real-time closed-loop velocity regulation (PID @ 20 Hz)
✓ Dynamic profile programming: ramps, steps, gusts, custom sequences
✓ Industrial touchscreen HMI for intuitive control
✓ Synchronized dual-motor load distribution
✓ Continuous data logging with CSV/Modbus export
✓ Arctic-grade components certified to –50°C
✓ Optional air preheating for extreme-cold optimization
✓ IP65 NEMA 4X enclosure for harsh environments
✓ Emergency stop and safety guarding per ISO 13857

APPLICATIONS:

• Arctic wind-driven water ingress testing
• Spray drift analysis in extreme cold climates
• Cold-soak aerodynamic load evaluation
• Cold-start aerosolization performance testing
• Transient wind-load validation for outdoor equipment
• Environmental compliance testing in cryogenic conditions

OPTIONS:


• Electric air preheater (minimizes motor load in extreme cold)
• 304 stainless construction (corrosive spray environments)
• Test-section viewing window (high-speed camera integration)
• Redundant anemometer (mission-critical backup)
• Extended data logging with 30-day historian
• Humidity chamber integration (simultaneous environmental stress)

ELECTRICAL REQUIREMENTS:


Power Supply:              480 VAC 3-phase, 60 Hz, 1,800 A minimum
Main Breaker:              600 A; per-motor feeder 400 A each
Soft-Start:                Recommended to limit inrush current
Control Interface:         Cat5e/Cat6 Modbus, 24 VDC logic
Environment:               –40…–50°C facility (walk-in chamber or climate room required)

CERTIFICATIONS:
Motors (NEMA Premium), Enclosure (IP65/NEMA 4X), Safety (ISO 13857)

PRICE:
Quote upon request (CAD) — Custom configuration

Contact Ormity Technical Sales for specification and integration planning.
