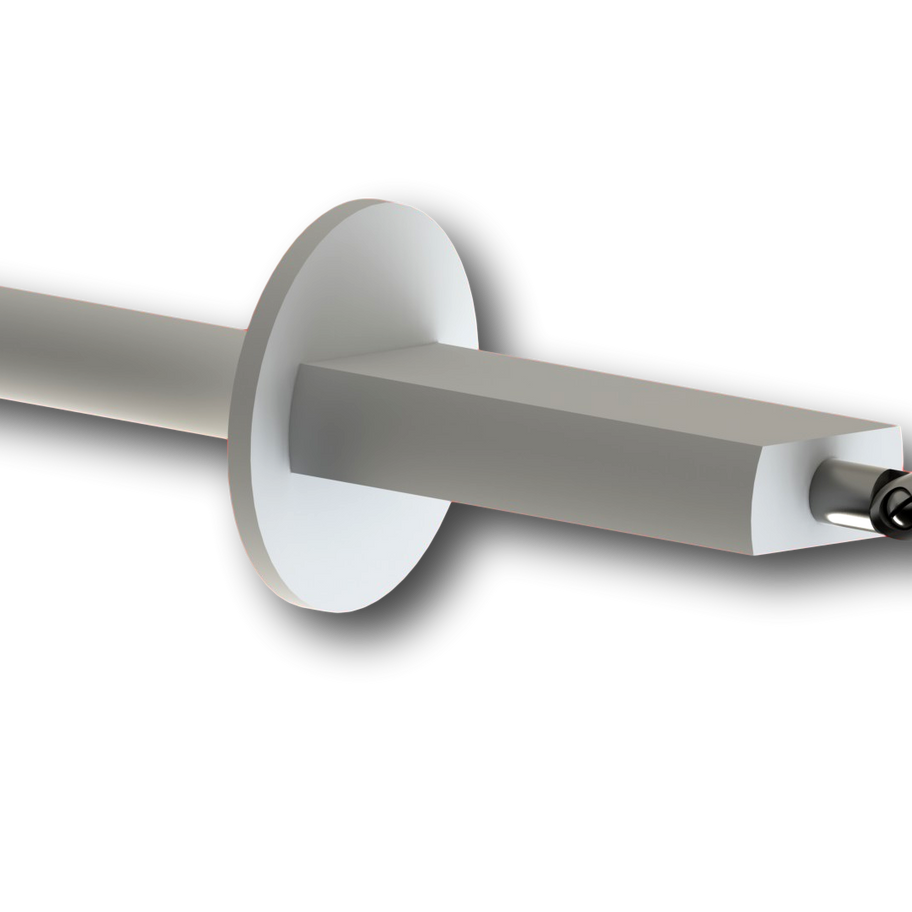

Jointed Test Finger – IEC 61032 Probe B

SKU DNTP032-2B|ORTYTP032-2B
Price

$980.00

Jointed test finger (test probe B) for access checks of openings with a finger, per IEC 61032 Fig. 2 / IEC 60529 IP2X.

Standards

  • IEC 61032 – Test probe B, Fig. 2 – jointed finger Ø 12 mm × 80 mm, stop face Ø 50 mm
  • IEC 60529 – IP2X – first numeral 2 / additional letter B
  • IEC 60335-1, IEC 60950-1 / IEC 62368-1, IEC 60598-1 (referenced as "test finger")

Technical data

ProbeTest probe B, Fig. 2 – jointed finger Ø 12 mm × 80 mm, stop face Ø 50 mm
IP code (IEC 60529)IP2X – first numeral 2 / additional letter B
Test force10 N ± 10 % (other values when specified by the product standard)
ConstructionStainless steel finger with two joints; Delrin™ stop face and handle

Ref.: DNTP032-2B (Dunel) / ORTYTP032-2B (Ormity) – former codes: ORTY032-1-500

Quantity

Test Principle & Function

Used to verify the protection of persons against access to hazardous live parts or hazardous mechanical parts. Applied with the specified force; electrical contact is detected with a 40–50 V indicator (DNLI042).

Accessories

Push-pull gauge 10 N (DNPG10N) and 42 V contact indicator (DNLI042).

Ordering, Calibration & Warranty

  • Lead time: up to 35 days with Ormity factory calibration; up to 60 days with an ISO/IEC 17025 calibration report (charged separately).
  • Warranty: 1 year, plus lifetime warranty against non-compliance (excluding standard revisions published after the date of sale).
  • Payment: international orders are 100% prepaid. All sales are final after 30 days.
  • Shipping: by third-party international carriers; transit time depends on destination, packing (crate/pallet) and calibration route. Ask for a delivery estimate before ordering.
